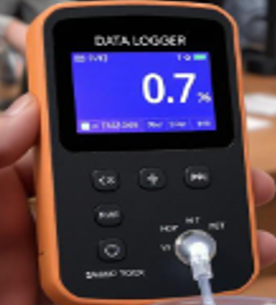

Designed for studying natural sciences in educational institutions. The system operates autonomously and includes a device with an LCD screen (64x128 pixels) for displaying sensor readings and configuring experimental parameters. It has the capability to store up to 100,000 measurements in its memory. Recorded data can be transmitted to a computer via both a wireless Bluetooth channel and a USB cable. All sensors feature self-diagnostics and self-calibration. The device operates for 150 hours without recharging (when taking measurements once a minute). Dimensions: 132 mm, height = 45 mm, Weight: 300 g. It operates in a temperature range of -10 to 50 °C. Measurement resolution is 12 bits. Supported platforms include PC, MAC, iPad, Linux, Android, and Chromebook.
The data logger includes the following sensors:
● Accelerometer (3 axes): range -8 to +8 g, accuracy 3%
● Gas Pressure Sensor: range 10 to 300 kPa, accuracy 2.5 kPa
● Temperature Sensor (built-in): range -10 to 50 °C, accuracy 1 °C
● Temperature Sensor (with probe): range -25 to 125 °C, accuracy 2 °C
● Current Sensor: range -1 to 1 A, accuracy 2 °C
● Voltage Sensor: range -30 to 30 V, accuracy 2 °C
● Low Voltage Sensor: range -500 to 500 mV, accuracy 2 °C
● Distance (Motion) Sensor: range 0.3 to 10 m, accuracy 2 °C
● Light Intensity Sensor: range 0 to 55,000 lux, accuracy 15%
● Microphone Sensor: sound wave amplitude range 0 to 5 V, accuracy 2 °C
● Accelerometer (3 axes): range -8 to +8 g, accuracy 3%
● Universal Input for External Sensors (2 ports): range 0 to 5 V, accuracy 2 °C
The package includes:
● Data Logger - 1 unit
● Charger - 1 unit
● USB Cable - 1 unit
● Quick Start Guide - 1 unit
● Information Sheet with a link to download the software - 1 unit
● Plastic tube for the pressure sensor - 1 unit
● Cable for the current sensor - 1 unit
● Cable for the voltage sensor - 1 unit
● Temperature sensor probe - 1 unit
